订阅如何使用Latex制作三线表格？
来源：网络收集 点击： 时间：2024-08-08程序算例1：注意黑色部分的标记，与图对应
\begin{figure}
\centering
\begin{tabular}{|c|c|}
\hline
% after \\: \hline or \cline{col1-col2} \cline{col3-col4} ...
AAA BBB \\
CCC DDD \\
\hline
\end{tabular}
\caption{SSSS}
\end{figure}
%%
方法21/1程序算例2：注意黑色部分的标记，与图对应
\begin{figure}
\centering
\begin{tabular}{|c|c|}
% \hline
% after \\: \hline or \cline{col1-col2} \cline{col3-col4} ...
AAA BBB \\
CCC DDD \\
% \hline
\end{tabular}
\caption{SSSS}
\end{figure}
方法31/1程序算例3：注意黑色部分的标记，与图对应
\begin{figure}
\centering
\begin{tabular}{cc}
% \hline
% after \\: \hline or \cline{col1-col2} \cline{col3-col4} ...
AAA BBB \\
CCC DDD \\
% \hline
\end{tabular}
\caption{SSSS}
\end{figure}
方法41/1程序算例1：注意黑色部分的标记

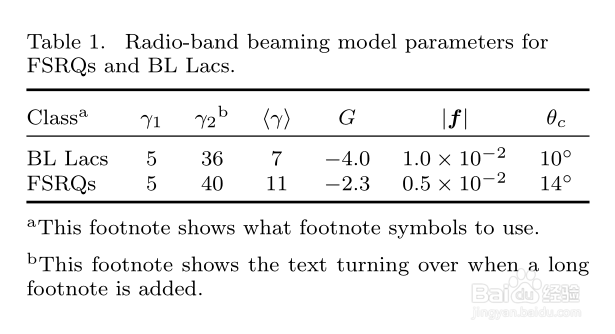

\begin{table}
\tbl{Radio-band beaming model parameters for\\ {FSRQs and BL Lacs.}}
{\begin{tabular}{@{}lcccccc}
\toprule
Class$^{\rm a}$ $\gamma _1$ $\gamma _2$$^{\rm b}$
$\langle \gamma \rangle$
$G$ $|{\bm f}|$ $\theta _{c}$ \\
\colrule
BL Lacs 5 36 7 $-4.0$ $1.0\times 10^{-2}$ 10$^\circ$ \\
FSRQs 5 40 11 $-2.3$ $0.5\times 10^{-2}$ 14$^\circ$ \\
\botrule
\end{tabular}}
\tabnote{$^{\rm a}$This footnote shows what footnote symbols to use.}
\tabnote{$^{\rm b}$This footnote shows the text turning over when a long footnote is added.}
\label{symbols}
\end{table}
方法51/1程序算例1：注意黑色部分的标记

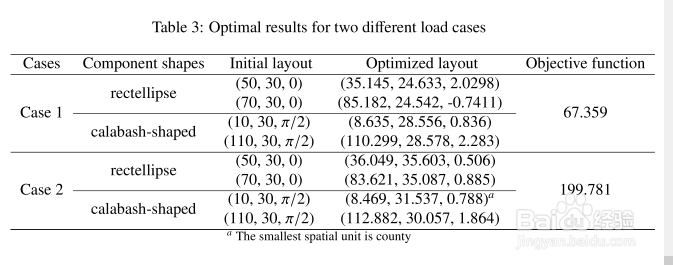

% \begin{table}
\begin{table}
\centering
\caption{Optimal results for two different load cases}
\label{Tab:03}
\begin{tabular}{ccccc}
\hline
% after \\: \hline or \cline{col1-col2} \cline{col3-col4} ...
Cases Component shapes Initial layout Optimized layout Objective function\\
\hline
\multirow{3}{*}{Case 1} rectellipse \tabincell{c}{(50, 30, $0$) \\ (70, 30, $0$)}
\tabincell{c}{(35.145, 24.633, 2.0298) \\ (85.182, 24.542, -0.7411)}
\multirow{3}{*}{67.359} \\
\cline{2-4}
calabash-shaped \tabincell{c}{(10, 30, $\pi /2$) \\ (110, 30, $\pi /2$)}
\tabincell{c}{(8.635, 28.556, 0.836) \\ (110.299, 28.578, 2.283)}
\\
\cline{1-5}
\multirow{3}{*}{Case 2} rectellipse \tabincell{c}{(50, 30, $0$) \\ (70, 30, $0$)}
\tabincell{c}{(36.049, 35.603, 0.506) \\ (83.621, 35.087, 0.885)}
\multirow{3}{*}{199.781} \\
\cline{2-4}
calabash-shaped \tabincell{c}{(10, 30, $\pi /2$) \\ (110, 30, $\pi /2$)}
\tabincell{c}{(8.469, 31.537, 0.788)$^a$\\ (112.882, 30.057, 1.864)}
\\
\cline{1-5}
\hline
\end{tabular}
\footnotesize{$^a$ The smallest spatial unit is county}\\
\end{table}
方法61/1程序算例1：注意黑色部分的标记

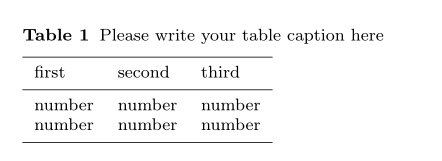

\begin{table}
% table caption is above the table
\caption{Please write your table caption here}
\label{tab:1} % Give a unique label
% For LaTeX tables use
\begin{tabular}{lll}
\hline\noalign{mallskip}
first second third \\
\noalign{mallskip}\hline\noalign{mallskip}
number number number \\
number number number \\
\noalign{mallskip}\hline
\end{tabular}
\end{table}
方法71/1% Please add the following required packages to your document preamble:
% \usepackage{multirow}
\begin{table*}
criptsize
\centering
\caption{Optimized results of the circular arch for different slenderness and opening angles}
\label{Tab03}
\begin{tabular}{cccccccccc}
\toprule
\multirow{2}{*}{Opening angle} \multicolumn{3}{c}{$R/r=10$} \multicolumn{3}{c}{$R/r=25$} \multicolumn{3}{c}{$R/r=50$} \\
\cmidrule(r){2-4} \cmidrule(r){5-7} \cmidrule(r){8-10}
$\omega_{1} (\%)$ $r_{{\rm min}}/r_0$ $r_{{\rm max}}/r_0$
$\omega_{1} (\%)$ $r_{{\rm min}}/r_0$ $r_{{\rm max}}/r_0$
$\omega_{1} (\%)$ $r_{{\rm min}}/r_0$ $r_{{\rm max}}/r_0$ \\
\midrule
$\varphi=60^{\circ} $ 3.920 0.793 1.355 5.243 0.558 1.122 6.694 0.503 1.133 \\
$\varphi=90^{\circ} $ 4.061 0.660 1.106 7.242 0.500 1.136 8.060 0.501 1.140 \\
$\varphi=120^{\circ} $ 6.480 0.558 1.127 9.011 0.500 1.145 9.535 0.500 1.147 \\
$\varphi=150^{\circ} $ 8.756 0.500 1.142 10.763 0.500 1.153 11.126 0.500 1.155 \\
\bottomrule
\end{tabular}
\end{table*}
注意事项欢迎提问，有问必答， 如果对您帮助，请在下面投票，您的认可是我不断分享的动力！
